Erbium Doped Fiber Amplifier Fiber Access Terminal For WDM / CATV

Product Details:
Brand Name: Sopto
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Payment Terms: T/T; L/C; Paypal
  • Detail Information
  • Product Description

Detail Information

Applications: WDM / CATV Height: 1U / 2U
Connecyot: SC / LC Low Noise Coefficient: 0dBm Input < 5dB
WDM: Optional Output Port: Optional
High Light:

fiber access terminal box


fat fiber access terminal

Product Description

1U 2U SC or LC Connector Erbium Doped Fiber Amplifier with Optional WDM


Erbium Doped Fiber Amplifier (EDFA) can be used in HFC system about CATV and SDH system in Telecom. It can provide preamplification, line amplifier and power amplifier. In multiple network applications, it is with good operation record, high stability.




Using erbium and ytterbium Co doped double clad fiber technology

The built-in low noise preamplifier without EDFA cascade reduces the deterioration of CNR and MER greatly

The output port is optional

1U:SC connector 4~16 ports optional; LC connector 8~32 ports optional, WDM can be selected

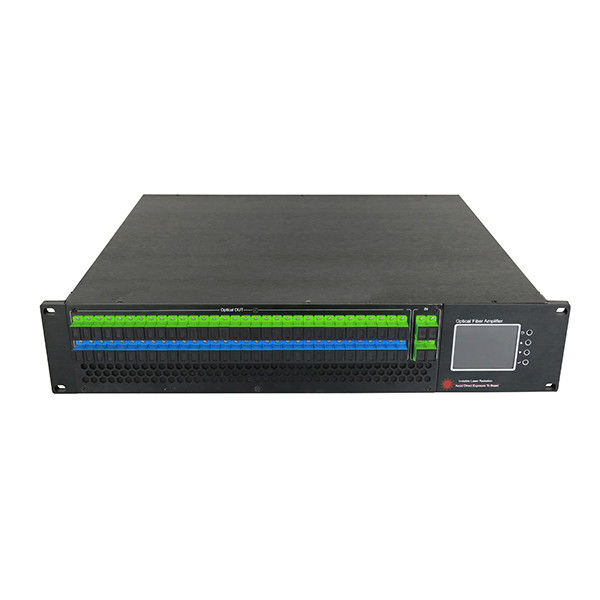

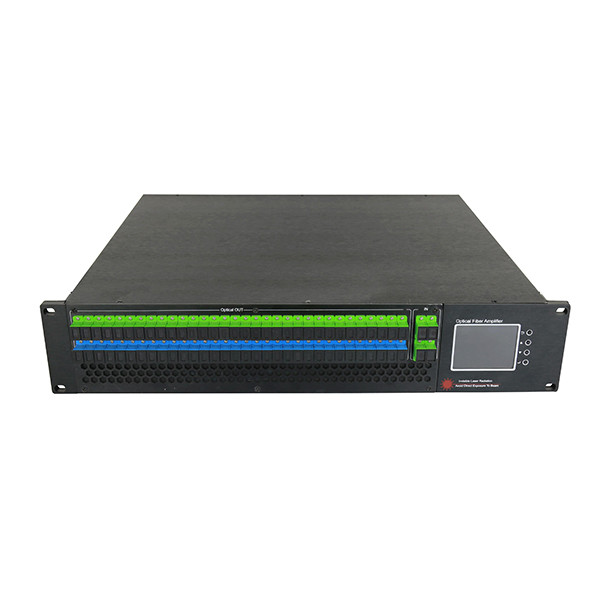

2U:SC connector 16~64 ports optional; LC connector 32~128 ports optional; optional WDM

Low noise coefficient: 0dBm input < 5dB

The perfect network management interface, conforms to the SNMP network management protocol

The server's mature dual power hot backup structure and the intelligent temperature control system controlled by microcomputer can effectively improve the system reliability




● CATV trunk and distribution network

WDM system


Ordering Information






Explain:This 1U device is the erbium and ytterbium Co doped high power fiber amplifier with 16 port output, output 22dBm, input connector SC/APC, main power 220V power supply, auxiliary power 48V power supply, output connector SC/APC, WDM, WDM joint SC/PC.





For example: SPOA-50EYA2-16*22-SA24A-WSU-O

Explanation: This is 2U chassis optical amplifier device,16 output ports, each port output power is 22dBm, input optical connector is SC/APC, main power supply voltage is 220V. Vice power supply voltage is 48V,output port optical connector is SC/APC ,with WDM,WDM connector is SC/UPC, built in optical switch.
