16 Cores Splitter FTTH Termination Box Dust Proof With PC + ABS Material
16 Cores Splitter FTTH Termination Box Dust Proof With PC + ABS Material 16 Cores Splitter FTTH Termination Box Dust Proof With PC + ABS Material 16 Cores Splitter FTTH Termination Box Dust Proof With PC + ABS Material 16 Cores Splitter FTTH Termination Box Dust Proof With PC + ABS Material 16 Cores Splitter FTTH Termination Box Dust Proof With PC + ABS Material

16 Cores Splitter FTTH Termination Box Dust Proof With PC + ABS Material

Product Details:
Brand Name: Sopto
Model Number: SPDF-O16SCS-XXX
Payment & Shipping Terms:
Delivery Time: 7-10 working days
Payment Terms: T/T; L/C; Paypal
Contact Now
  • Detail Information
  • Product Description

Detail Information
Material: PC+ABS Type: Indoor / Outdoor Wall Mounted & Pole-mounted
Adapter: SC / LC Color: White
Ip: 65 Application: FTTH FTTB FTTX Network, LAN/WAN
High Light:

wall mount fiber termination box

,

termination box for fiber optic cable

Product Description

Dust-proof 16 cores Splitter Distribution Box Suitable for Outdoor and Indoor Use



This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building



Features



● Total enclosed structure, be in nice shape

● Protects and manages cable effectively

● Secured with anti-theft locking mechanism

● Standard size, light weight

● High quality PC +ABS material

● Good properties of dust, and moisture proofing, IP65

● Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one

● Suitable for SC and LC duplex adaptor and pigtail

● Easy to operate

● Suitable for both outdoor and indoor use



Item Parameter
Model No. SPDF-O16SCS-XXX

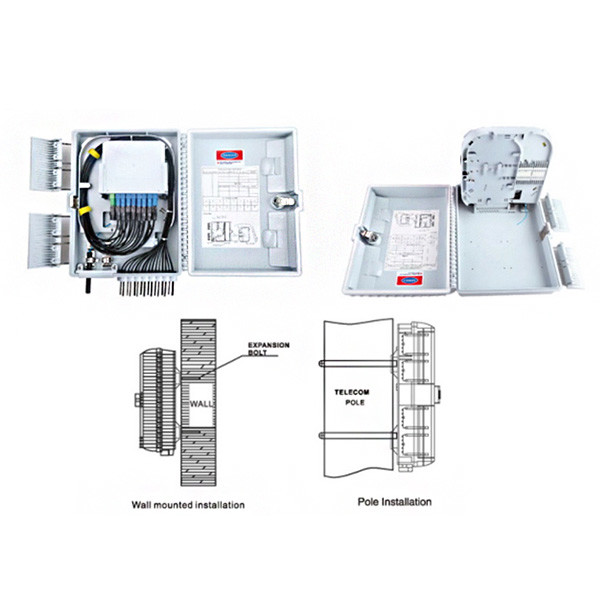

Mounting way Wall-mounting or Pole mounting
Work Temperature -40 °C ~+85 °C
Relative Humidity ≤ 85% (+30 °C)
Atmospheric Pressure 70Kpa~106Kpa
Insert Loss ≤ 0.2dB
UPC Return Loss ≥ 50dB
APC Return Loss ≥ 60dB
Insert and Pull out Life ≥ 1000 times
Insulation The grounding device is insulated with the Termination box, IR ≥1000m Ω/500V (direct current)
Withstand Voltage Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover. U ≥3000V (direct current)



16 Cores Splitter FTTH Termination Box Dust Proof With PC + ABS Material 0

Applications



● Telecommunication subscriber loop

● Fiber to the home(FTTH)

● LAN/WAN



Ordering Information



Part Number Product Description Size(mm)
SPDF-O16SCS-PMPA

Splitter Distribution Box Outdoor Wall mounted 16 cores Simplex SC/Duplex LC type available for Steel tube

splitter installation without hoop, adaptors, pigtails and splitter Plastic type A

317*237*101


SPDF-O16SCS-PMHPA

Splitter Distribution Box Outdoor pole mounted 16 cores Simplex SC/Duplex LC type available for Steel tube

splitter installation with hoop,without adaptors, pigtails and splitter Plastic type A

317*237*101


SPDF-O16SCS-PMPB

Splitter Distribution Box Outdoor Wall mounted 16 cores Simplex SC/Duplex LC type available for Steel tube

splitter installation without hoop, adaptors, pigtails and splitter Plastic type B

 301*224*73
SPDF-O16SCS-PMHPB

Splitter Distribution Box Outdoor pole mounted 16 cores Simplex SC/Duplex LC type available for Steel tube

splitter installation with hoop, without adaptors, pigtails and splitter Plastic type B

 301*224*73
SPDF-O16SCS-PPPA

Splitter Distribution Box Outdoor Wall mounted pole mounted 16 cores Simplex SC/Duplex LC type available

for plugin splitter installation without hoop, adaptors, pigtails and splitter Plastic type A

 292*218*83
SPDF-O16SCS-PPHPA

Splitter Distribution Box Outdoor pole mounted16 cores Simplex SC/Duplex LC type available for plugin splitter

installation with hoop, without adaptors, pigtails and splitter Plastic type A

 292*218*83
SPDF-O16SCS-PPPB

Splitter Distribution Box Outdoor Wall mounted 16 cores Simplex SC/Duplex LC type available for plugin splitter

installation without hoop, adaptors, pigtails and splitter Plastic type B

 301*224*73
SPDF-O16SCS-PPHPB

Splitter Distribution Box Outdoor pole mounted 16 cores Simplex SC/Duplex LC type available for plugin splitter

installation with hoop

 301*224*73
SPDF-O16SCS-PPPC

Splitter Distribution Box Outdoor pole mounted/wall mounted 16 cores Simplex SC/Duplex LC type available

for plugin splitter installation without hoop, adaptors, pigtails and splitter Plastic type C

 317*237*101
SPDF-O16SCS-PPHPC

Splitter Distribution Box Outdoor pole mounted/wall mounted 16 cores Simplex SC/Duplex LC type available

for plugin splitter installation with hoop, without adaptors, pigtails and splitter Plastic type C

 317*237*101
