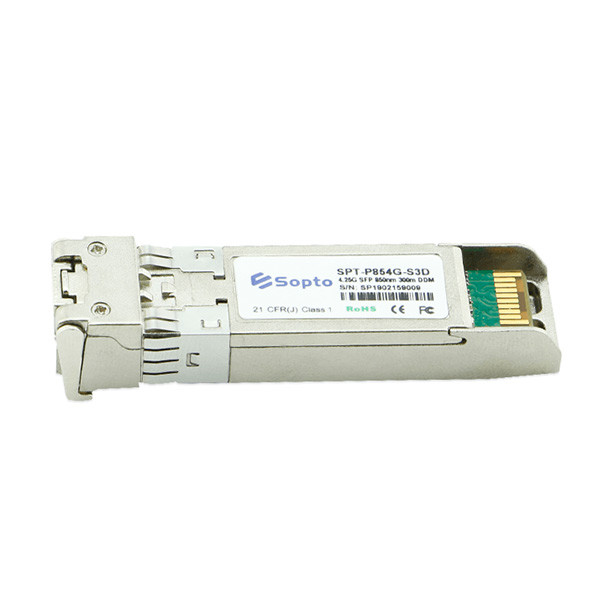

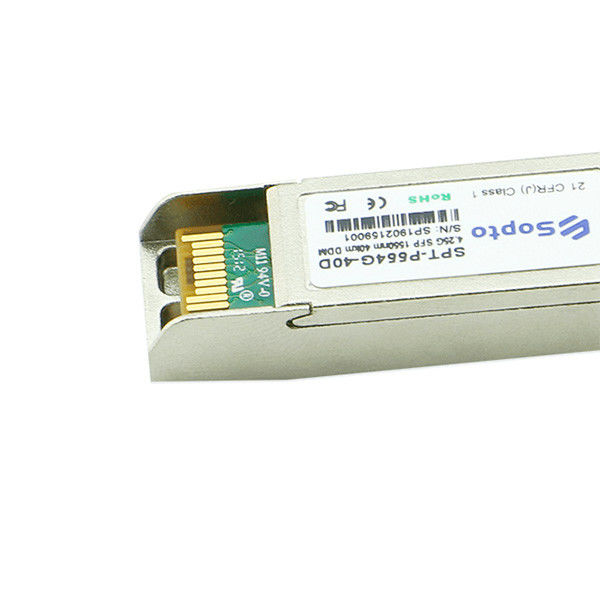

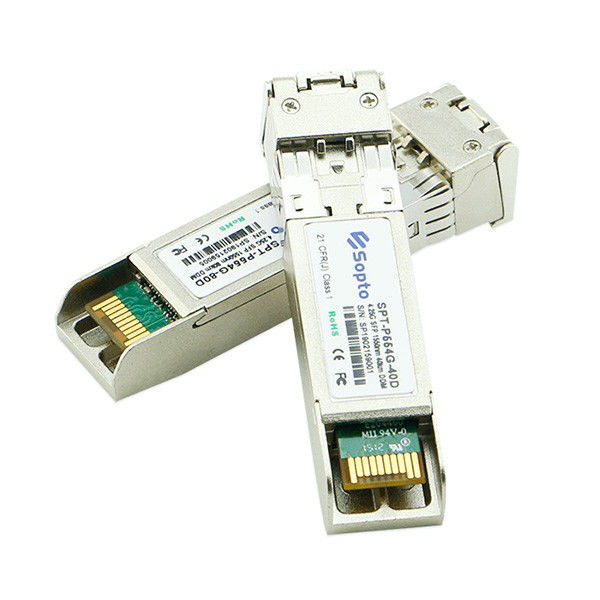

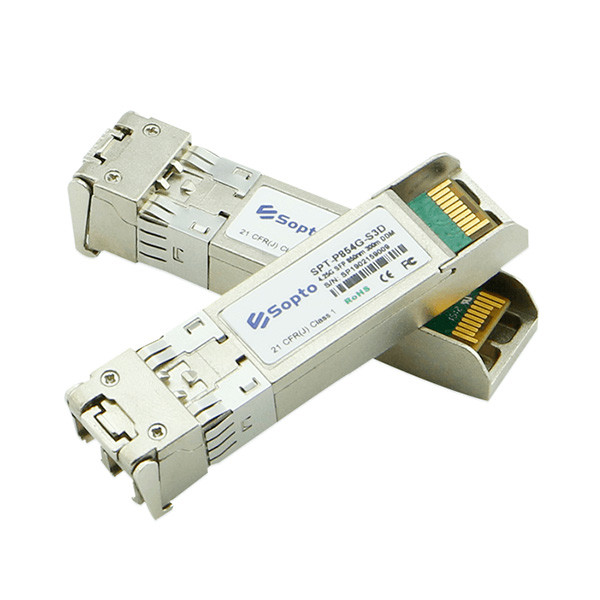

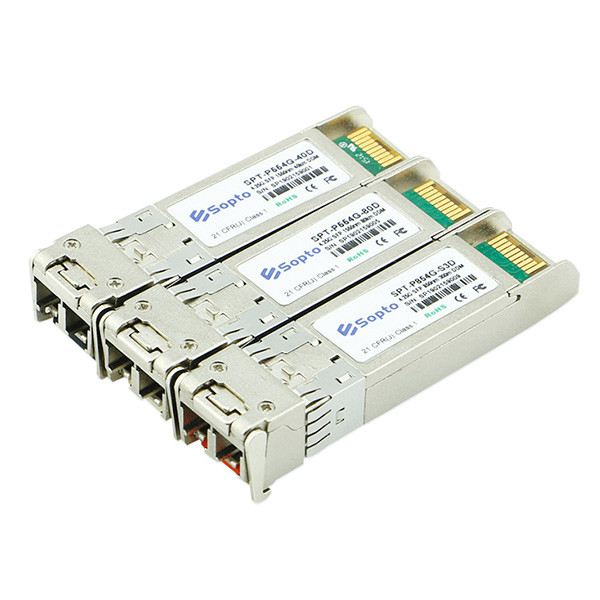

4G SM / MM Fiber Optic Transceiver 850nm / 1310nm / 1550nm Wavelength

Product Details:
Brand Name: Sopto
Certification: ISO9001 / CE / RoHS
Payment & Shipping Terms:
Packaging Details: 10 pcs/plate; 0.024kg/pcs
Delivery Time: 3-5 working days
Payment Terms: T/T; L/C; Paypal
  • Detail Information
  • Product Description

Detail Information

Wavelength: 850nm / 1310nm / 1550nm Fiber Type: SMF/MMF
Power Supply: Single +3.3V Transmission Distance: 300m On MMF OM3 And 80km Over SMF
Interface: Duplex LC Operating Temperature: Commercial 0 To 70 Industrial -40 To 85
High Light:

sfp transceiver single mode


fiber optic sfp module

Product Description

4G Fiber Optic Module SM / MM Fiber with DDM Commercial Temperature


SOPTO’s 4G SFP is a series of optical transceiver modules designed for use in 4x/2x/1x Fibre Channel and Gigabit Ethernet . They are compliant with the SFP MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.




● Single +3.3V power supply

● Supports date rates up to 4.25Gb/s

● Built-in digital diagnostic functions

● Transmission distance up to 300m on MMF OM3 and 80km over SMF

● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C




● RoHS-6


● FC-PI 13.0

● IEEE Std 802.3

Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHS


transceiver certificate.png




● 2X/1X FC

1000Base Ethernet


Storage Area Network(SAN)

Other Optical Link


Ordering Information


PN Data Rate (Gbps) Distance Fiber Output Power(dBm) Sensitivity(dBm) Interface Temp. DDM
SPT-P854G-S3D 4.25 300m/OM3 MM -5-1 -11 Duplex LC 0 to 70 D
SFP-P134G-10D 4.25 10km SM -50 -15 Duplex LC 0 to 70 D
SFP-P134G-20D 4.25 20km SM -40 -15 Duplex LC 0 to 70 D
SPT-P554G-40D 4.25 40km SM 03 -17 Duplex LC 0 to 70 D
SPT-P554G-80D 4.25 80km SM 05 -23 Duplex LC 0 to 70 D
