Detail Information |
|||
Product Name: | PLC Splitter | Input Number: | 1 |
---|---|---|---|
Output Number: | 8 | Warranty: | 1~3 Years |
Fiber Type: | G.657.A1 | Length: | 1 M |
Input Connector: | SC | Output Connector: | SC |
Connector Endface: | UPC | Package: | Plugin |
Port: | Shenzhen Port | ||
High Light: | single mode fiber splitter,fiber cable splitter |
Product Description
fiber optic splitter PLC Splitter Type Plugin 1x8 SM 1m SC fiber optic splitter box
Sopto’s single-mode Planar Lightware Circuit Splitter (PLC type) are developed based on unique silica glass waveguide process with reliable precision aligned fiber pigtail in a miniature package, it provides a low-cost light distribution solution with small form factor and high reliability. The PLC type devices have high performance in terms of low insertion loss, low PDL high return loss and excellent uniformity over a wide wavelength range from 1260nm to 1650nm and working in temperature from -40C to +85C. The PLCS devices have standard configurations of 1x4, 1x8, 1x16 and 1x32 configurations, as well as customized structures of 2x8, 2x16, 2x32 and 2x64.

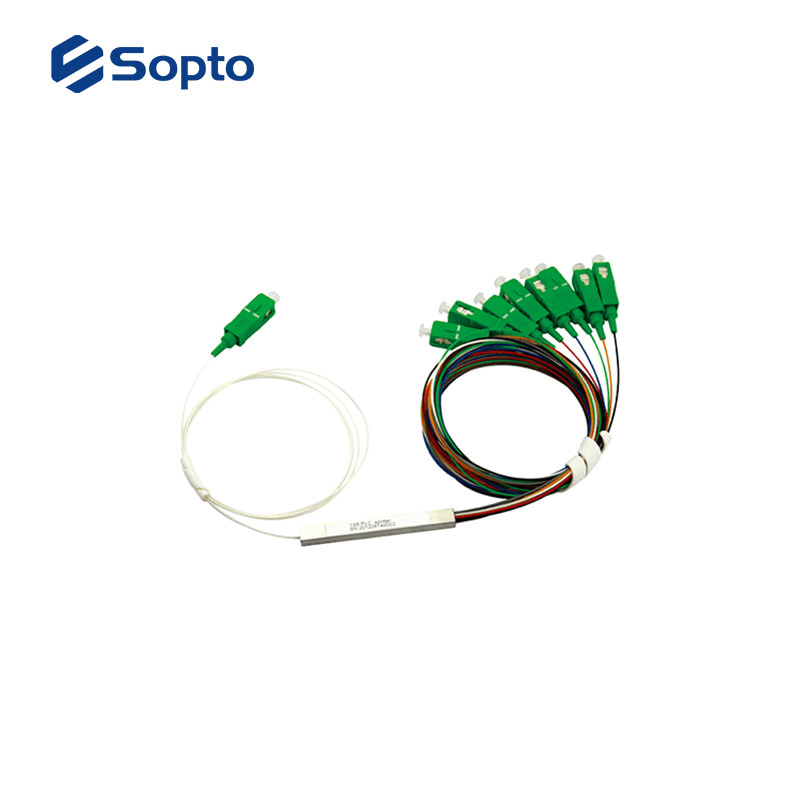

Steel tube splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.

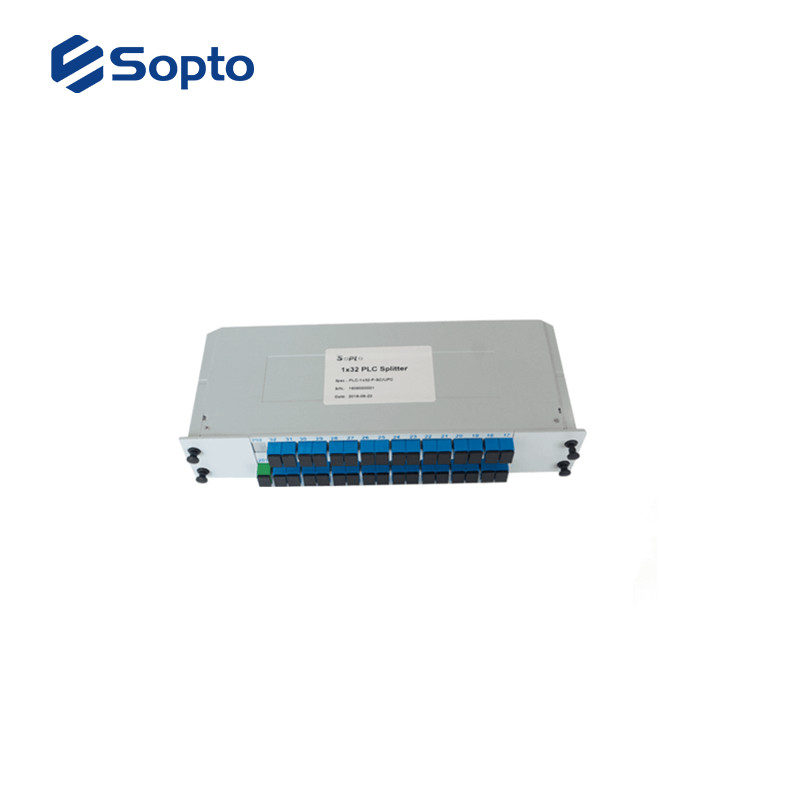

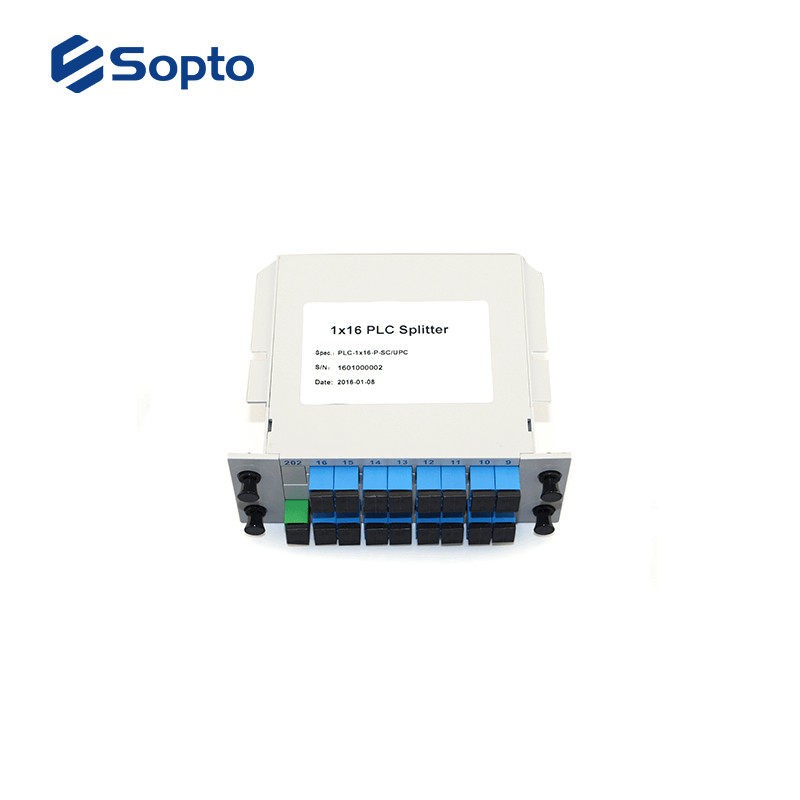

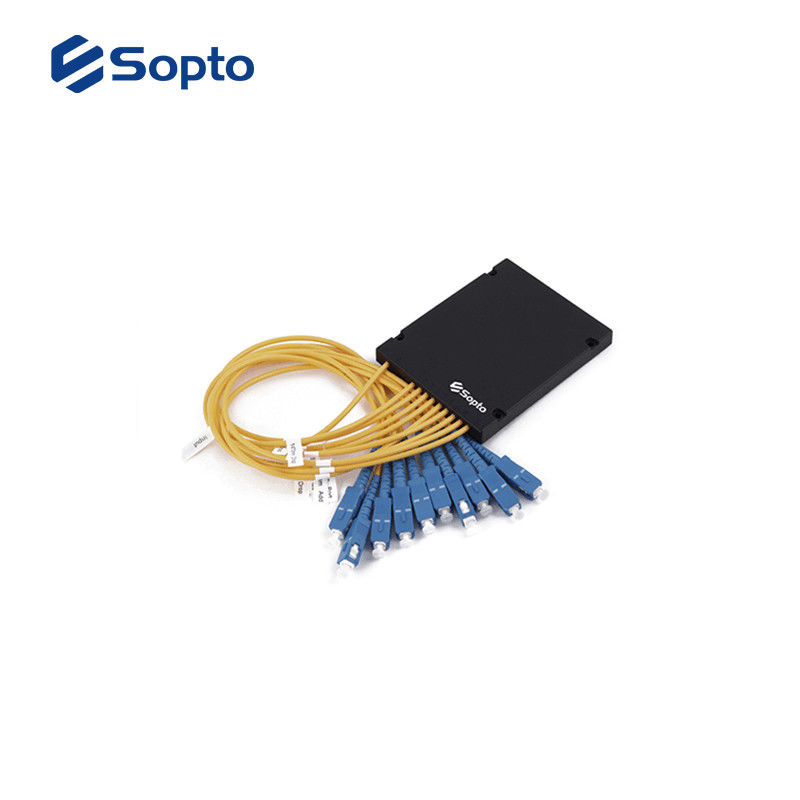

ABS Cassette,Plugin splitter or Tray type is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets. splitter is most commonly used in the PON networks.

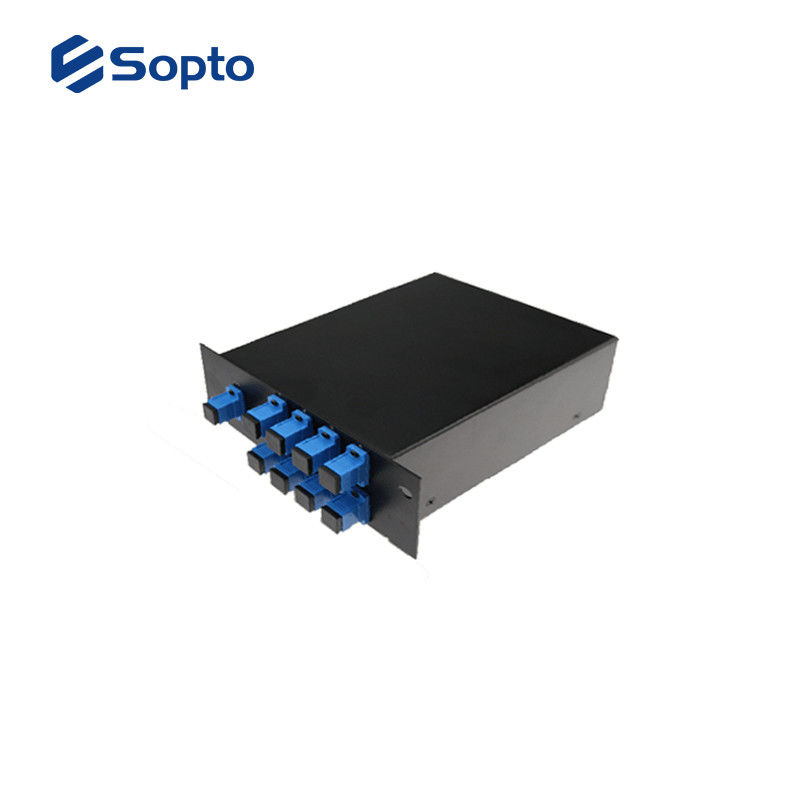

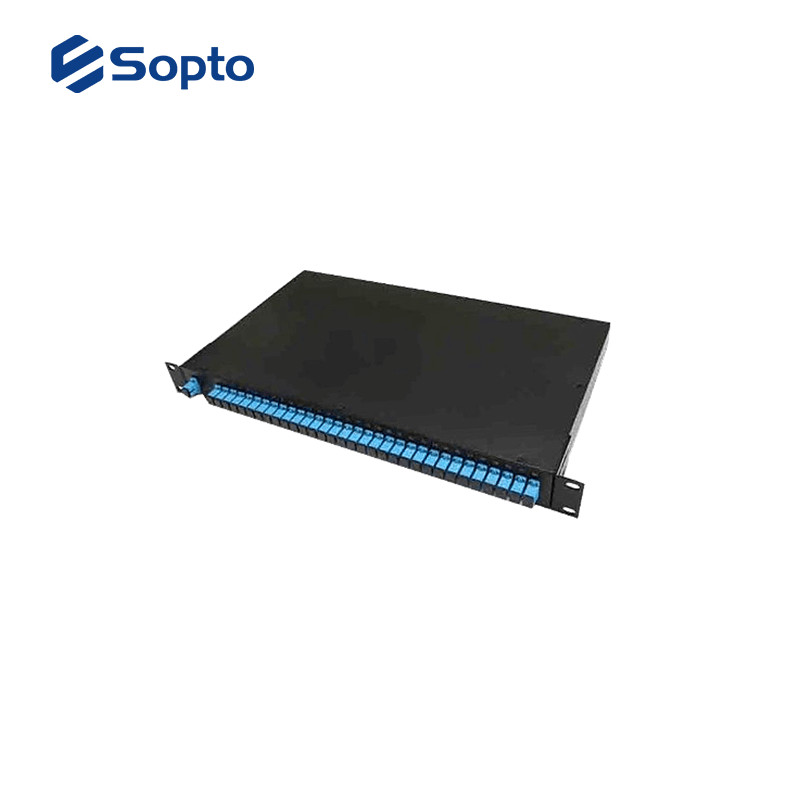

Rack Mount type fiber PLC splitters are all with superior optical performance, high stability and high reliability to meet various application requirements.
Features
>Compact design
>Low insertion loss and low PDL
>High reliability
>High channel counts
>Wide wavelength range
>Large operating temperature range
>Customized packaging and configuration
Applications
>FTTx systems
>LAN,WAN and Metro Networks
>Analog/Digital Passive Optical Networks
>CATV Networks
>Other applications in fiber optical systems
Part Number:SPS-2×16-A1-09-1 S S U- B P 1 2 3 4 5 6 7 8 9 10 |
|
1 - Input Number |
1;2 |
2 - Output Number |
2;4;8;16;32;64;128etc |
3- Fiber Type |
D:G.652D;A1:G.657.A1;A2:G.657.A2;M:Customized Fiber Type |
4 - Diameter |
25:250μm;09:0.9mm (with Loose Tube );20:2.0mm;30:3.0mm;I:built-in |
5 - Length |
05:0.5M;1:1M;15:1.5Metc |
6 - Input Connector |
[Null]:No Input Connector;L:LC;S:SC;F:FC |
7 - Output Connector |
[Null]:No Input Connector;L:LC;S:SC;F:FC |
8 - Connector Endface |
U:UPC;A:APC;P:PC |
9- Package |
B:Steel Tube;P:Plugin;A:ABS Cassette;T:Tray;R:Rack Fixed |
10 -Type |
P:PLC |
1. Are you the real manufacturer?
Yes. Sopto is Group background. We are manufacturers of fiber cables, fiber, optic active and passive components, and PON equipment.
2. Do you offer Compatible Services?
Yes, we offer compatible service with Cisco, Nortel, Extreme, Foundry, Alcatel, Allied, HP, 3COM, Juniper, Enterasys....
3. Does sopto accept a small order?
Yes, it is available. Sopto support new projects of our customers and a long-term trustworthy relationship always starts from a small order.
4. What is your delivery time?
It depends on the quantity of the order. Normally we have them in stock, but for the busy season, it takes 1-3 working days.
5. What payment methods do you support?
The methods are followed: T/T, L/C, Western Union and PayPal.
6. Who are your main customers?
All our customers are valuable. We have more than 600 customers worldwide. China Telecom, China Mobile, China Unicom and SOHU are our main domestic customers.
