Simplex / Duplex Fiber Patch Cord Single Mode

Product Details:
Brand Name: Sopto
Certification: RoHS / ISO9001
Payment & Shipping Terms:
Delivery Time: 3-7 working days
Payment Terms: T/T; L/C; Paypal
  • Detail Information
  • Product Description

Detail Information

Fiber Type: Simplex And Duplex Application: CATV/ ODF/ Telecommunication Networks
Connector Type: ST SC LC FC MPO MT PMU DIN D4 E2K Etc Length: Customized
Material: PVC/ LSZH/ Armored Etc Color: Yellow/ Orange/ Aqua Or Customized
Wavelength: 1310nm Or 1510nm
High Light:

fiber optic pigtail


multimode fiber patch cord

Product Description

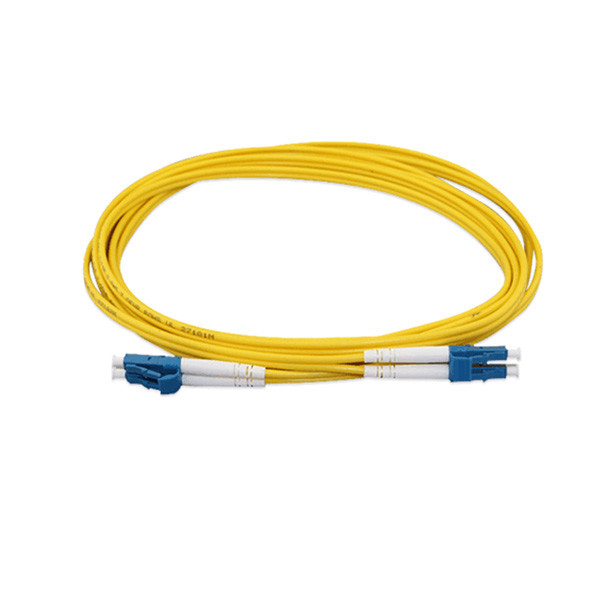

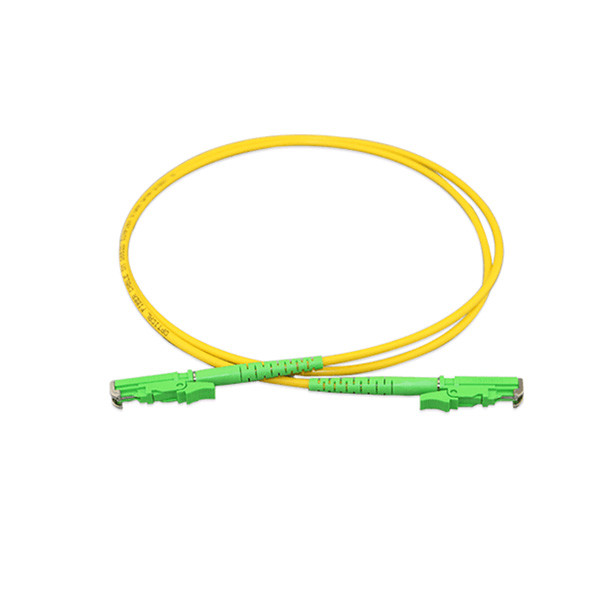

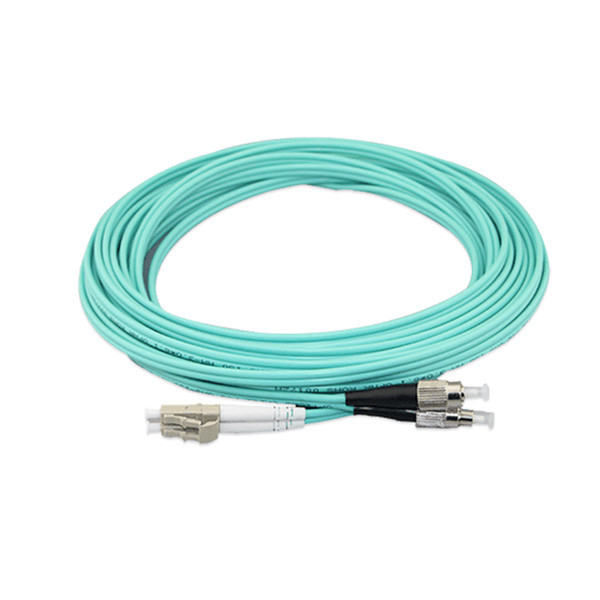

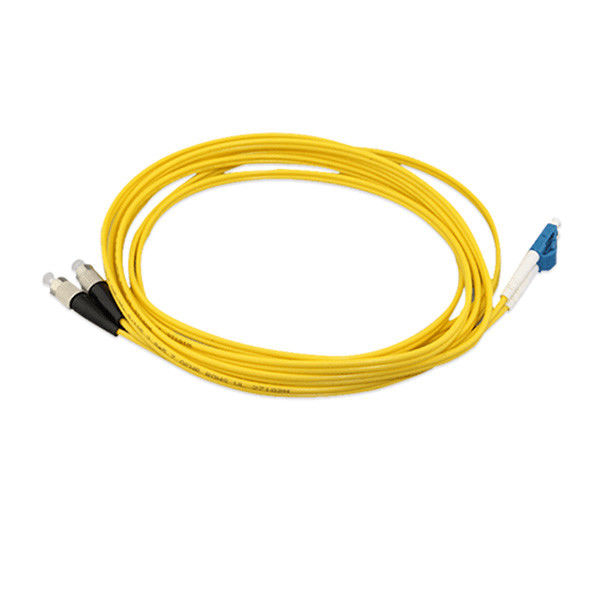

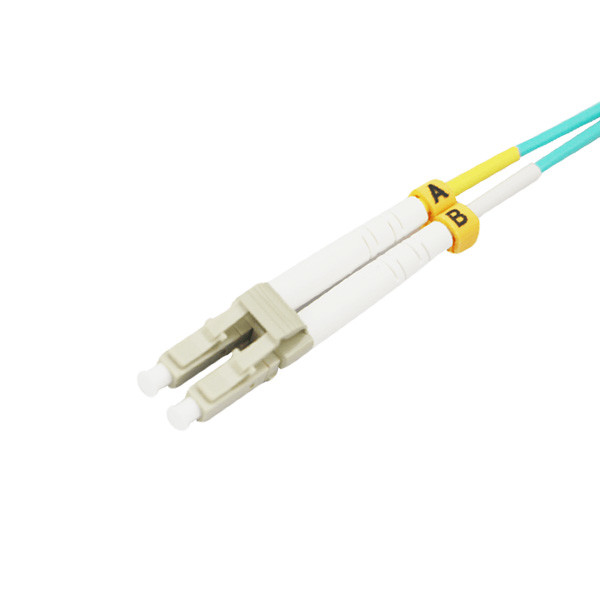

Simplex or Duplex Customized Length Fiber Optic Patch Cords with FC / SC / LC / ST Connectors


Connectorized cable assemblies are cord-type fiber optical cables terminated with connectors at both ends. The type of cable fiber and connector and the length of the patch cords can be freely specified by the customer as shown below.




End-Face Type: PC/UPC/APC

Fiber Diameter: 0.9mm, 2.0mm or 3.0mm

Available for simplex and duplex

The outer jacket can be PVC, LSZH, Armored etc

Available for different connectors: SC, LC, FC, ST, MPO, MTP, MU, DIN, D4, E2K etc

Fiber Type: Single mode fiber G652D, G657A1 and G657A2, Multimode fiber OM1, OM2, OM3 and OM4 are available

Low insertion loss and high return loss, high dense connection, easy for operation

Customer lengths and connectors are available upon request


Simplex or duplex, Up to 144 cores, Single mode only, OM1/OM2/OM3/OM4 are available, Customized length


Simplex / Duplex Fiber Patch Cord Single Mode 0


Simplex or duplex, Up to 144 cores, Single mode or multi-mode, OM1/OM2/OM3/OM4 are available, Customized length


Simplex / Duplex Fiber Patch Cord Single Mode 1




 SM(9/125SMF-28 or equivalentOS1) MM(50/125,62.5/125(OM2&OM1),50/125,10G(MM) OM3
 Insertion loss(typical)  dB  ≤0.3  ≤0.2  ≤0.25  ≤0.2
 Return loss  dB  ≥45  ≥50  ≥60  ≥30
 Operating wavelength  Nm 1310, 1510
 Exchangeability  dB ≤0.2
 Vibration  dB  ≤0.2
 Operating temperature  ℃  -40~75
 Storage temperature  ℃  -45~85
 Cable Type    Simplex or duplex (zip cord) φ3.0, φ2.0, φ0.9,PVC or LSZH





Sopto fiber optic patch cords took the first lead to pass the ISO9001 quality system, the requirements of European RoHs






Computer networks

Telecommunication networks

ODF of optical transmission system

High speed data transmission network

High quality graphic transmission network

Connection of optical transmission equipment


Ordering Information


Ordering Info. for Patch Cord

Part Number:SPP - SC - FCAA2D305V(A)

                                    1      2     3 4    5 6     7    8 9 10
Product Description:
Patch Cord Duplex 2×SC/UPC 2× SC/UPC G.652D 3.0mm 5M length PVC Armored

1 - Connector A LC SC FC ST etc
2 - Connector B LC SC FC ST etc
3 – End face A U:UPC polish; P:PC polish; A:APC polish
4 – End face B U:UPC polish; P:PC polish; A:APC polish
5 - Fiber Count 1: Simplex; 2: Duplex
6 - Fiber Mode M1: OM1; M2: OM2; M3: OM3; M3H:OM3(300); M4: OM4; D: G.652D; A1: G657.A1
7 - Diameter 09:0.9mm ; 20: 2.0mm ; 30: 3.0mm etc
8 - Length 5 : Cable total length 5M ; etc
9 - Cable Jacket Materials V: PVC; H:LSZH; O:OFNR; F:OFNP; Y:PE
10 - Armored Null: Without armored A: Armored
Cable Jacket Color Default:Aqua ( OM3,OM4) ;Orange (OM1,OM2) ; Yellow (SM)



  1. Default Connector A - Connector B order in PN: LC-SC LC-FC LC-ST SC-FC SC-ST FC-ST
  2. When Connector A is same as Connector B , Default End face A – End face B order in PN: UA PA UP
  3. M3(OM3):10G multimode optical fiber can be divided into three categories, 150 M, 300 M, and 550 M according to the maximum transmission distance. The default is 150M
  4. M3H:OM3(300) Maximum transmission distance of 300 M
  5. Additional instructions for the branch:

①When the main diameter cable is not marked, the default is 2.0mm ;

②“-X” Other branch length,Next to the branch diameter, continue to add at the end of the model. The length of both sides of the branch is different as -M (custom branch length).
